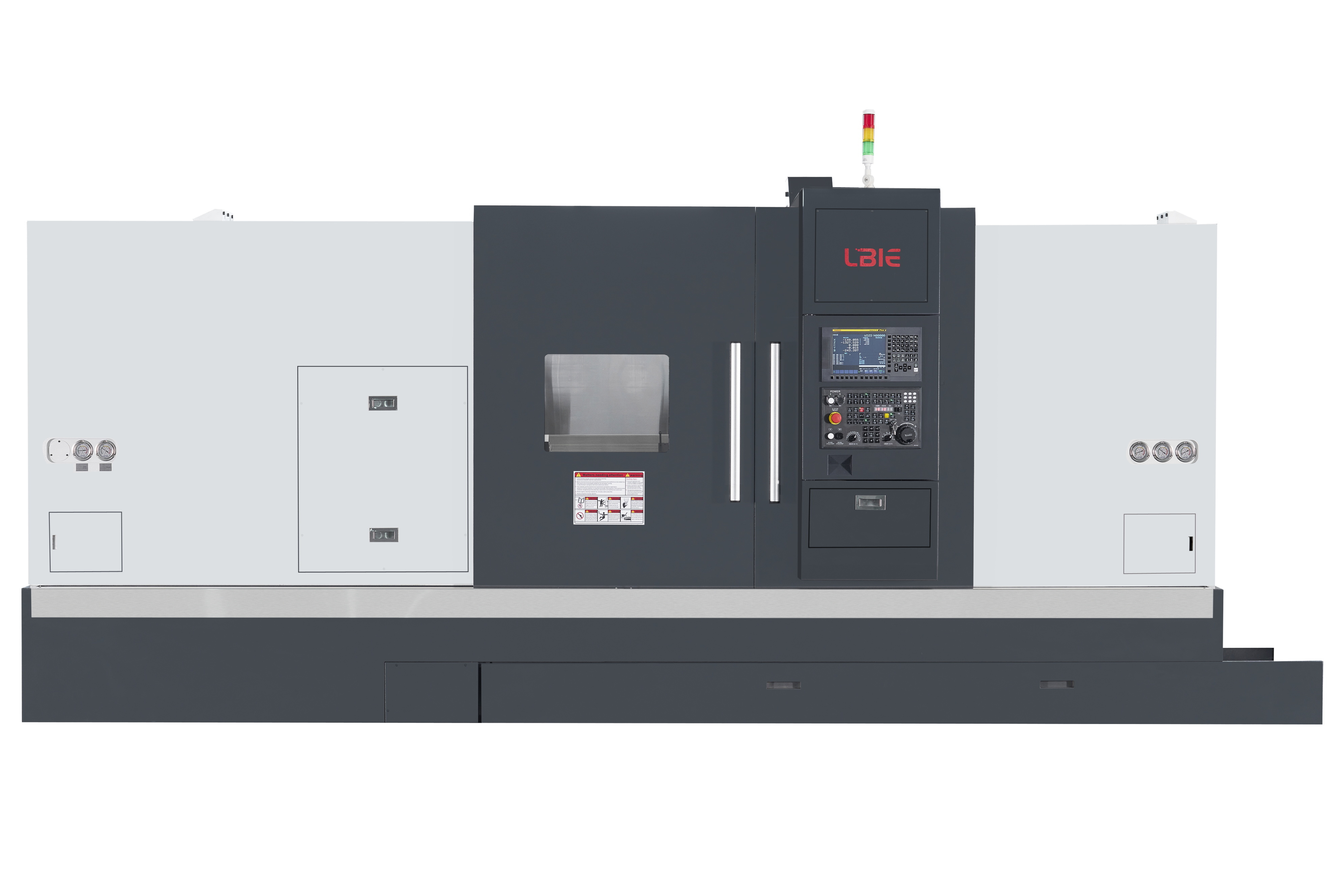

BG1500-10ZYDW Orthogonal Y-axis Turning and Milling Machine Tool CNC Turning Metal Lathe Machine Price Horizontal Slant Bed Lathe Cnc Lathe Machine Metal Slant Bed Millturn Precision Machine

Ask Latest Price

Video Channel

Brand Name :LBIE

Model Number :BG1500-10ZYDW

MOQ :1

Price :Contact Us

Payment Terms :T/T

Supply Ability :20 units/month

Delivery Time :90-120 days

Packaging Details :wooden box package

no. of spindles :Single

number of axes :4

type :TURNING CENTER

max. length of workpiece (mm) :1500

machining capacity :Heavy Duty

travel (x axis)(mm) :260 mm

travel (z axis)(mm) :1505 mm

dimension(l*w*h) :4900 × 2260 × 2410

brand name :LBIE

cnc control system :FANUC\Syntec

Contact Now

Add to Cart

View Product Description

BG1500-10ZYDW Orthogonal Y-axis Turning and Milling Machine Tool CNC Turning Metal Lathe Machine Price Horizontal Slant Bed Lathe Cnc Lathe Machine Metal Slant Bed Millturn Precision Machine

precisely torno lathe sale for cnc bed slant BMT driven tool turning machin metal lathes

Description

Advanced High-Travel CNC Lathe with Enhanced Capabilities

This advanced high-travel turning and milling composite CNC lathe is designed with an inclined bed to facilitate efficient chip evacuation. Building on the W7 model, it provides extended travel and swing diameters ranging from 1 meter to 3 meters. Customizable options include the integration of a Y-axis for enhanced machining flexibility and center supports for added stability. Larger spindle sizes are also available upon request, making this machine highly adaptable to various production requirements.

Specification

Parameter	Unit	BG1500-10ZYDW Orthogonal Y-axis Turning and Milling Machine Tool
Max. Turning Diameter	mm	Φ520
Max. Machining Length	mm	1500
Max. Swing Diameter over bed	mm	Φ600
Max. Swing Diameter Over slide	mm	Φ450
Bar Feeding Diameter	mm	<Φ75
Spindle Bore	mm	Φ86
Max. Spindle Speed	RPM	3000
X-axis Travel	mm	260
Y-axis Travel	mm	±50
Z-axis Travel	mm	1505
Tailstock Travel	mm	1400
Morse Taper	mm	65(5#)
Rapid Feedrate	m / min	22
Max. Driven Tool Speed	RPM	4000

Products Description

BG1500-10ZYDW Orthogonal Y-axis Turning and Milling Machine Tool CNC Turning Metal Lathe Machine Price Horizontal Slant Bed Lathe Cnc Lathe Machine
Metal Slant Bed Millturn Precision Machine

Product Paramenters

Details Display

The machine's transmission system employs high-precision ball screws and high-rigidity,high-speed roller guides.

The X-axis and Z-axis feature high-rigidity linear slides with anoptimally calculated track span,offering low resistance,highprecision,and speeds up to 22m/min.This enhances workefficiency and reduces processing time.

The Driven Tool Turret can perform various machining operations such as drilling,milling,and tapping,which meansthat a single machine can complete more types of tasks,enhancing the flexibility and range of the machine.Overall,thelathe Driven Tool Turret significantly improves the efficiencyand quality of lathe machining by providing multi-functionalmachining capabilities,quick tool changes,high precision,andautomated operations.It is an indispensable and importantcomponent in modern precision manufacturing.

Our CNC turret lathes are equipped with avariety of mechanicalspindles to choose from.These spindles are notable for theirhigh rigidity,minimal noise and vibration,and,crucially,theirability to perform high-precision operations.The precisionof movement and the robustness of the spindle componentsplay a pivotal role in defining the quality of processing and theefficiency of cutting operations.
NSK super-precision bearings,featuring high running accuracy,rapid speed capabilities,and exceptional precision,are ideallysuited for spindle units in machine tools.These bearings arespecifically engineered to reduce noise,vibration,and heatgeneration,enhancing overall performance.
In addition,the eletric spindle can be selected.The advantagesof an electric spindle include high speed,high precision,widerange of speed variation,high rigidity,precise control,energysaving and environmental protection,and low maintenancecosts.Overall,the machine tool electric spindle has significantadvantages in improving processing efficiency,precision,and quality,and therefore,it is widely used in modernmanufacturing.
